2023 LIPPMANN 3048J-W

Description

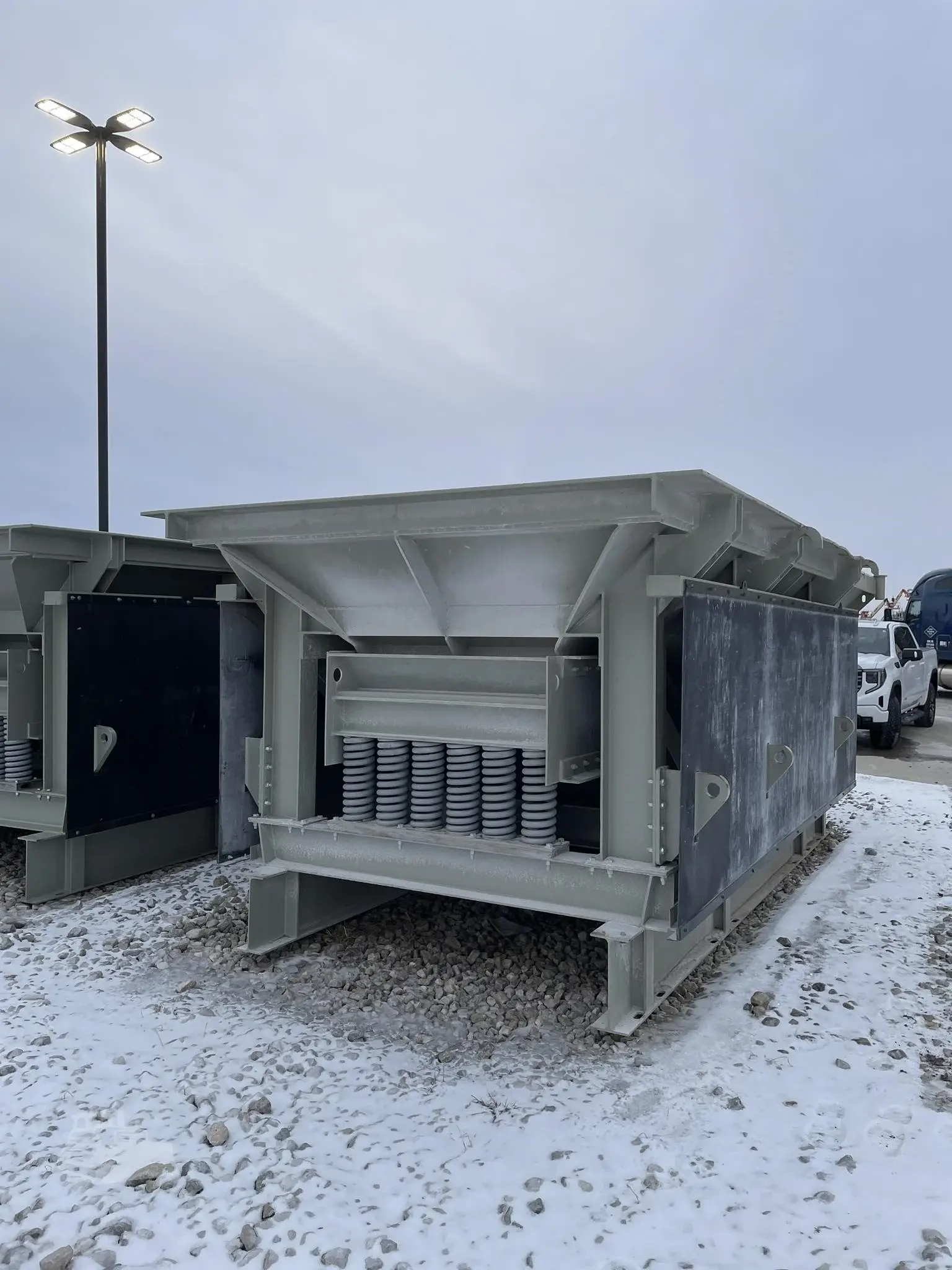

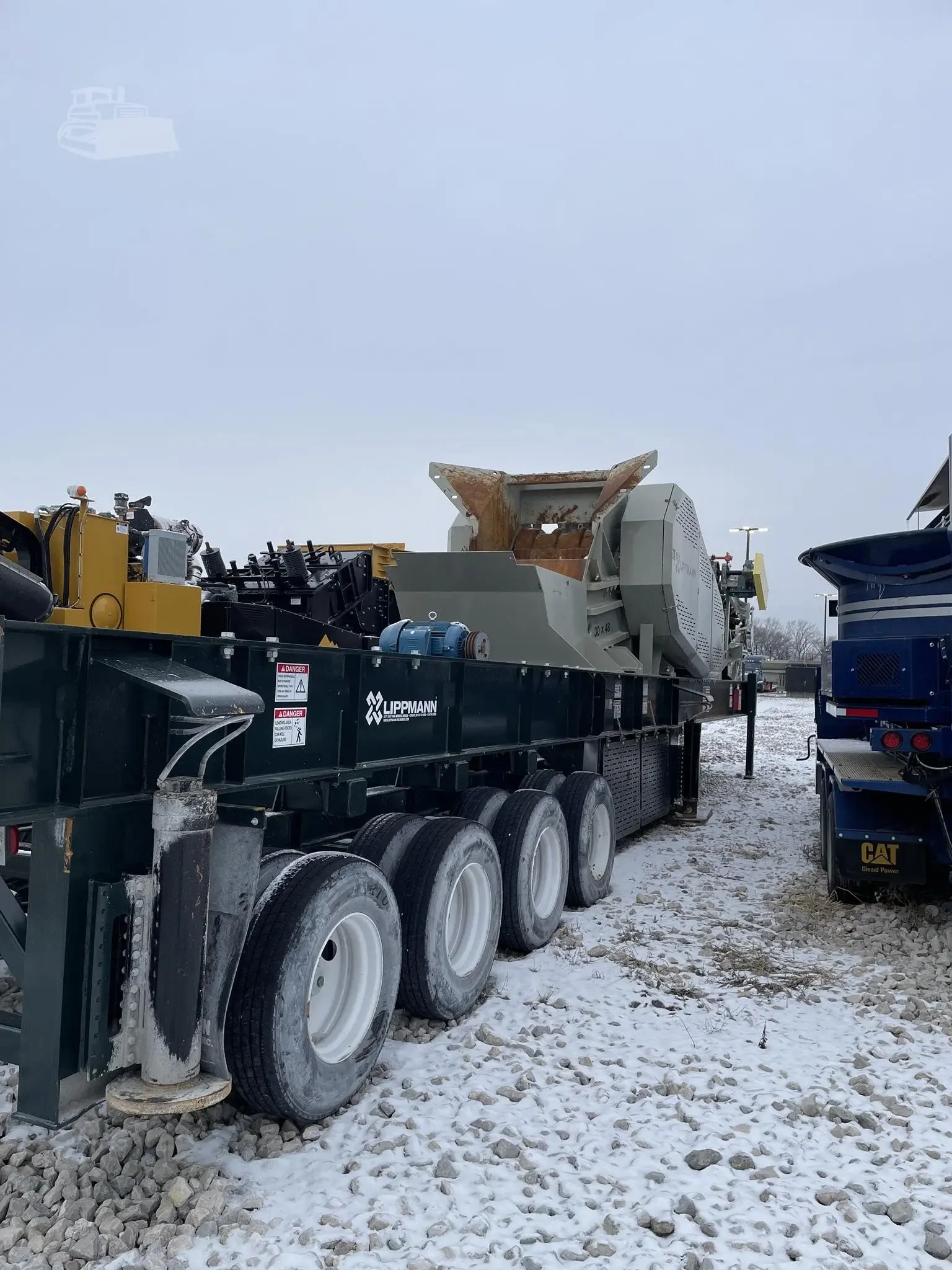

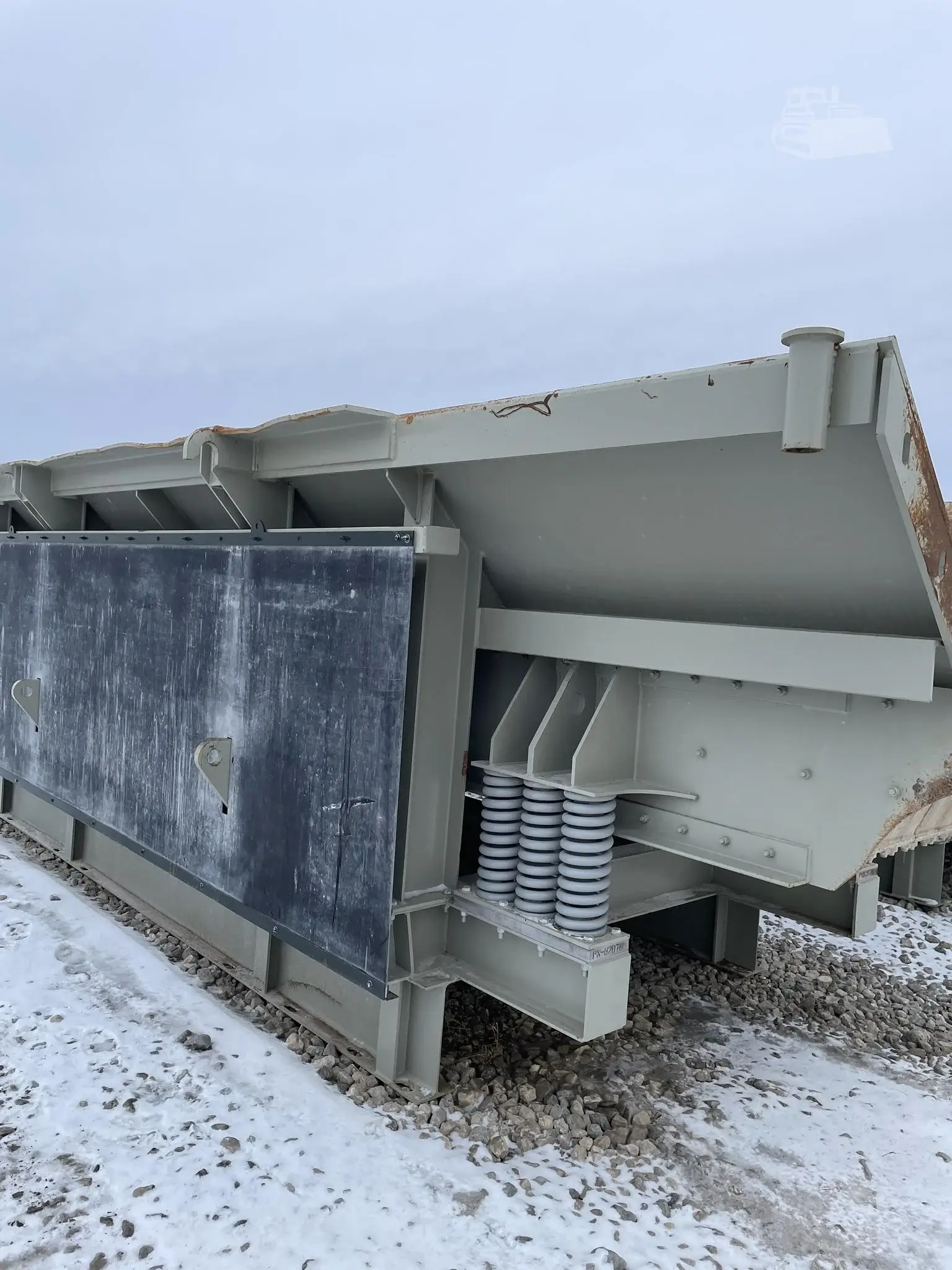

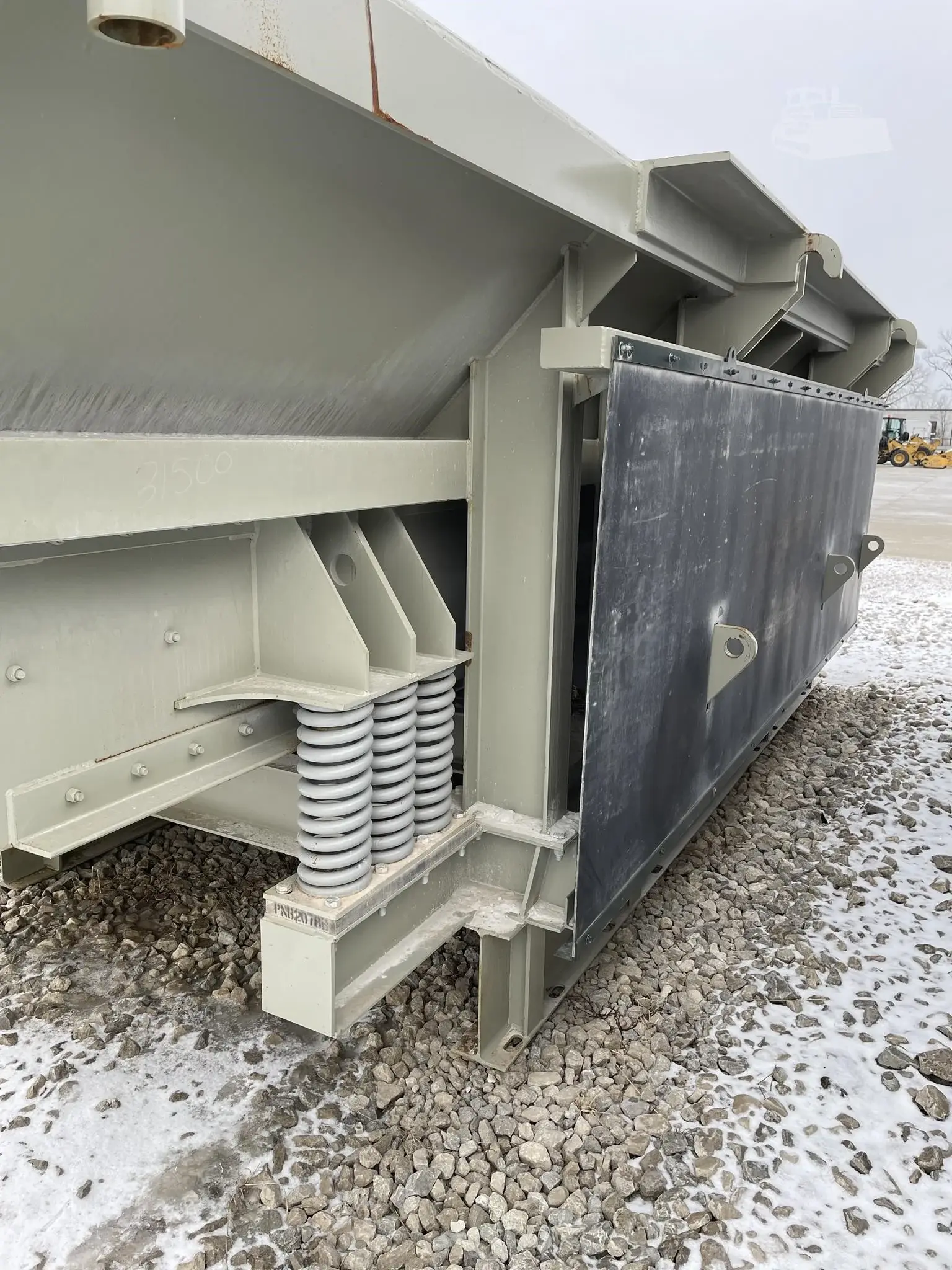

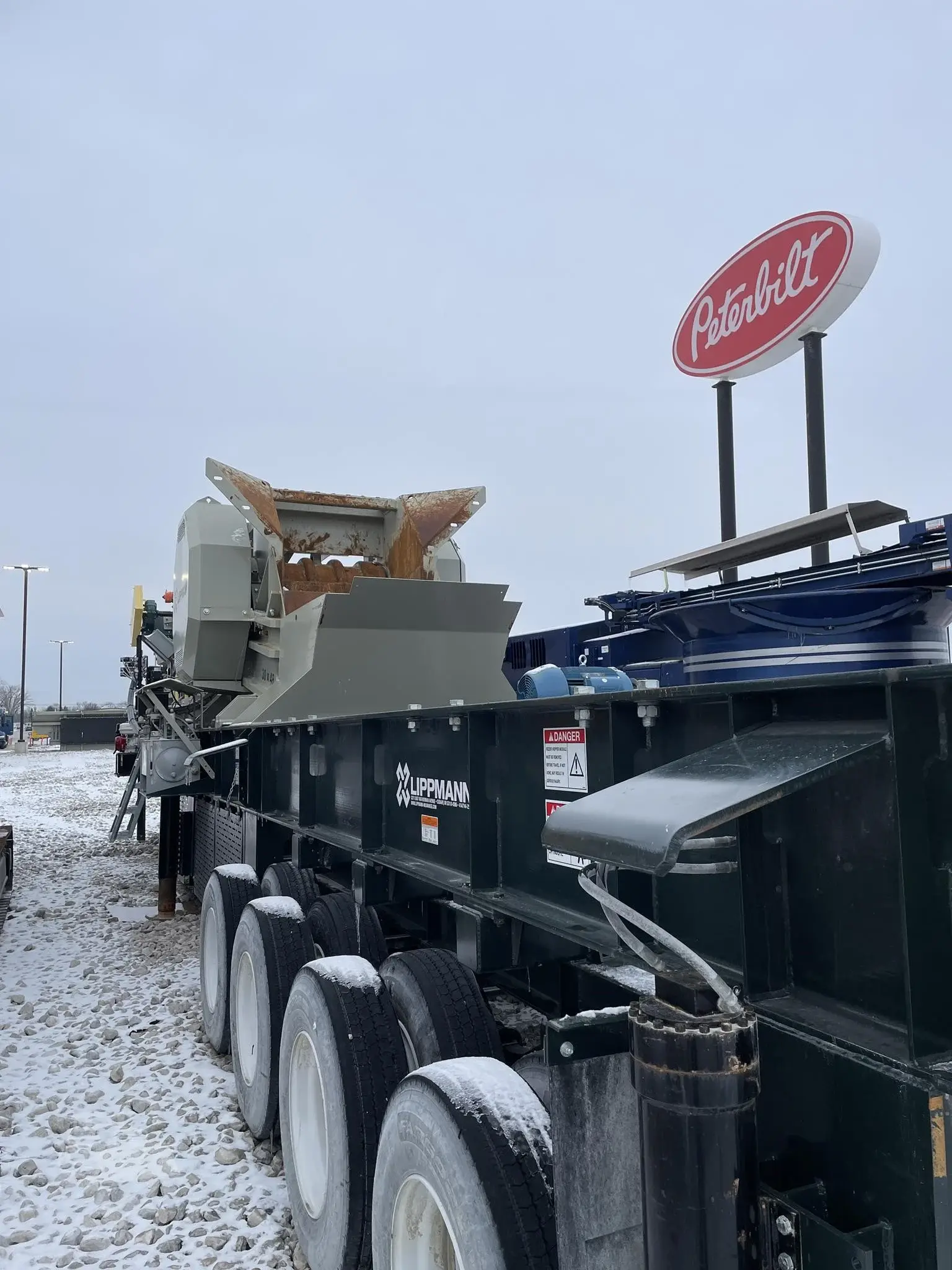

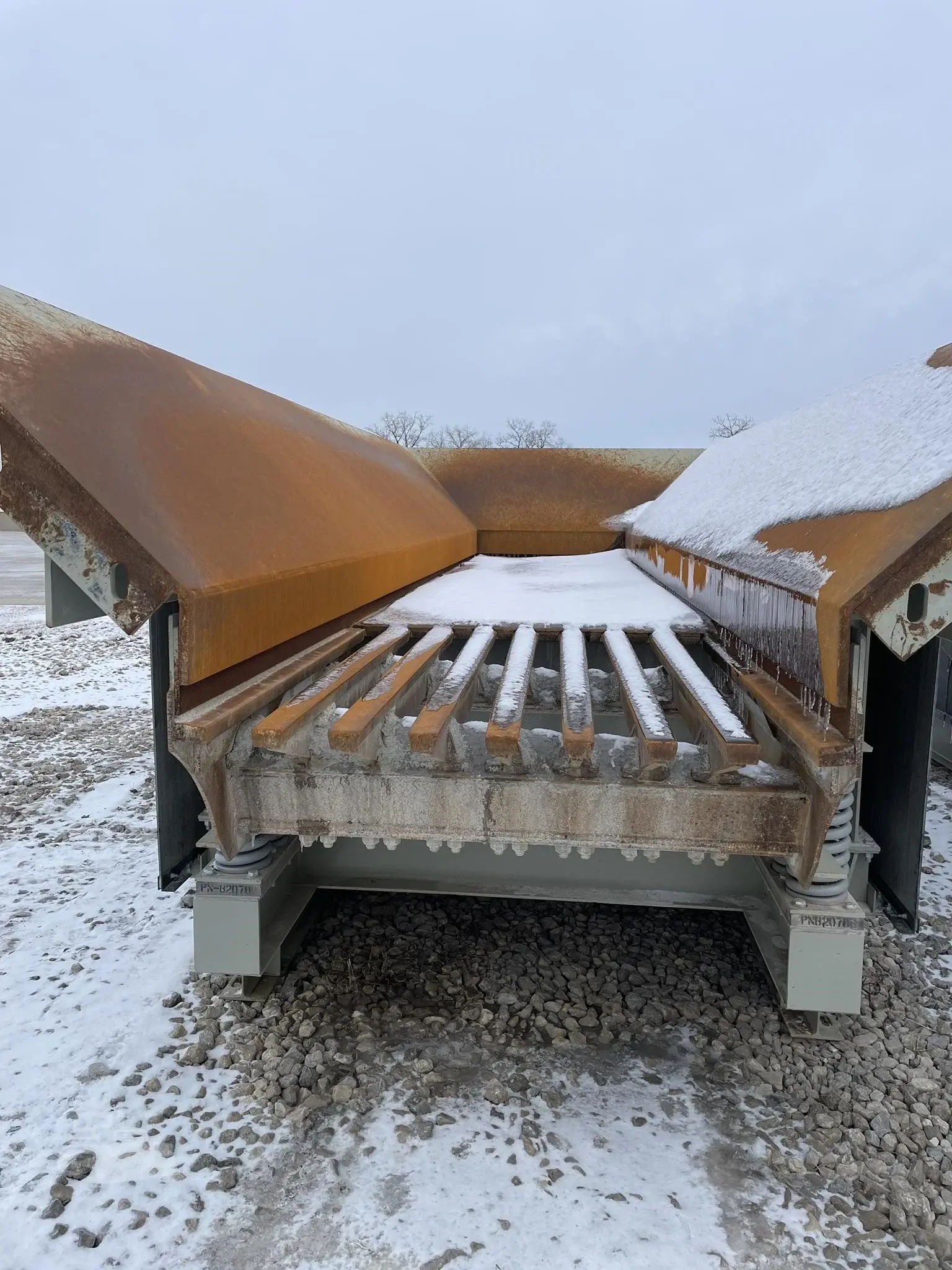

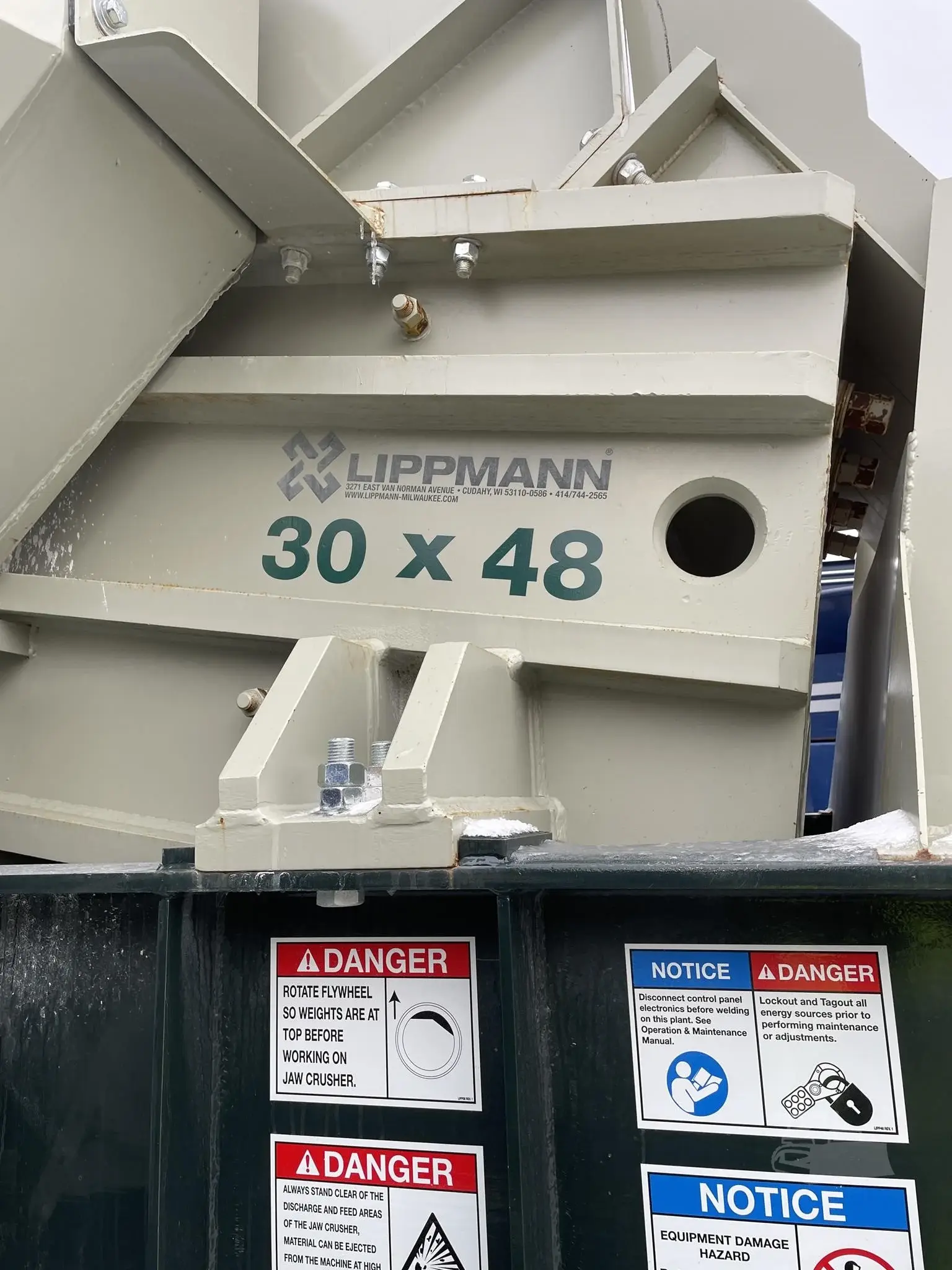

The 2022 Lippmann 3048J‑W Portable Jaw Crushing Plant is a robust, heavy-duty solution delivering exceptional performance for hard rock, aggregate, concrete, and recycling applications. Built on a rugged wheeled chassis, this powerhouse combines large-capacity material handling, user-focused design, and unmatched durability. Key Features & Technical Specs Jaw Dimensions: 30″ × 48″ (762 × 1,219 mm) jaw chamber with opposing wedge design—ideal for processing large feed sizes up to 27″ (686 mm). Vibrating Grizzly Feeder: 51″ × 20′ (1,295 × 6,100 mm) feeder with 5′ (1.52 m) adjustable grizzly section—ensures efficient prescreening and material flow control. Heavy-Duty Hopper: 20‑ton AR-steel hopper offers massive feed capacity and high durability in tough conditions. Engine Power: 200 HP (149 kW) jaw drive with 40 HP (30 kW) feeder; two 15 HP (11 kW) discharge conveyors—ensures balanced power distribution. Crushing Speed: 250 rpm rotor with ¾″ (19 mm) stroke provides high crushing efficiency. Discharge Conveyor: 48″ (1,219 mm) belt conveyor with 318 ft/min (237 m/min) operating speed—greatly enhancing stockpile productivity. Grizzly Bypass & Tail Options: Optional grizzly bypass conveyor, hydraulic folding hopper extensions, tire bulkheads, and cross-conveyor under grizzly—customizable to jobsite specs. Toggle Configurations: Hydraulic, tapered wedge, or manual toggles offer flexibility and tramp protection. [ Transport Weight & Dimensions: Total weight: ~154,250 lb (69,966 kg) Feeder module: 32,250 lb (14,628 kg) Tires: 315/80R22.5; Rear axle: ~70,500 lb capacity; King pin: ~51,500 lb. Performance Capacity (Based on CSS) 3″ (76 mm) CSS – ~250 STPH (227 TPH) 4″ (102 mm) CSS – ~345 STPH (313 TPH) 5″ (127 mm) CSS – ~420 STPH (381 TPH) 6″ (152 mm) CSS – ~500 STPH (454 TPH) 7″ (178 mm) CSS – ~600 STPH (544 TPH) 8″ (203 mm) CSS* – ~720 STPH (653 TPH) (*manual toggle only) Why Choose the 3048J‑W? Maximum Durability: Extra-heavy ribbed steel frame, stress-relieved post-weld; forged alloy eccentric shaft; tapered roller bearings for high-load resilience. Versatile Configuration: Hydraulic toggles, grizzly bypass, and foldable features allow tailored setups for any site condition. High Throughput: Capable of up to 720 STPH (653 TPH) with a wide range of CSS settings, it's built to produce premium aggregate products. Mobility & Setup: Wheeled chassis enables quick deployment and repositioning; built for demanding, hard rock environments. Ease of Maintenance: Modular feeder and conveyor systems with optional jack legs and control systems optimize uptime. The 2022 Lippmann 3048J‑W combines industrial-strength jaw crushing, versatile transportability, and customization options—making it a premium choice for operations requiring heavy-duty crushing, efficient prescreening, and high-capacity throughput. Hours: 1,741 Serial Number: 2022-110415 Condition: Used
